How to Repair Xbox HDMI Without Making It Worse

October 18, 2026

A black TV screen does not automatically mean your Xbox is finished. In many cases, the issue is a worn HDMI cable, the wrong TV input, or a display setting that needs to be reset. But if you are searching for how to repair Xbox HDMI, it is worth separating the simple checks from a damaged HDMI port. A loose, bent, or broken port needs precision board-level repair – and forcing it can turn a repairable console into a more expensive problem.

Start With the Easy HDMI Checks

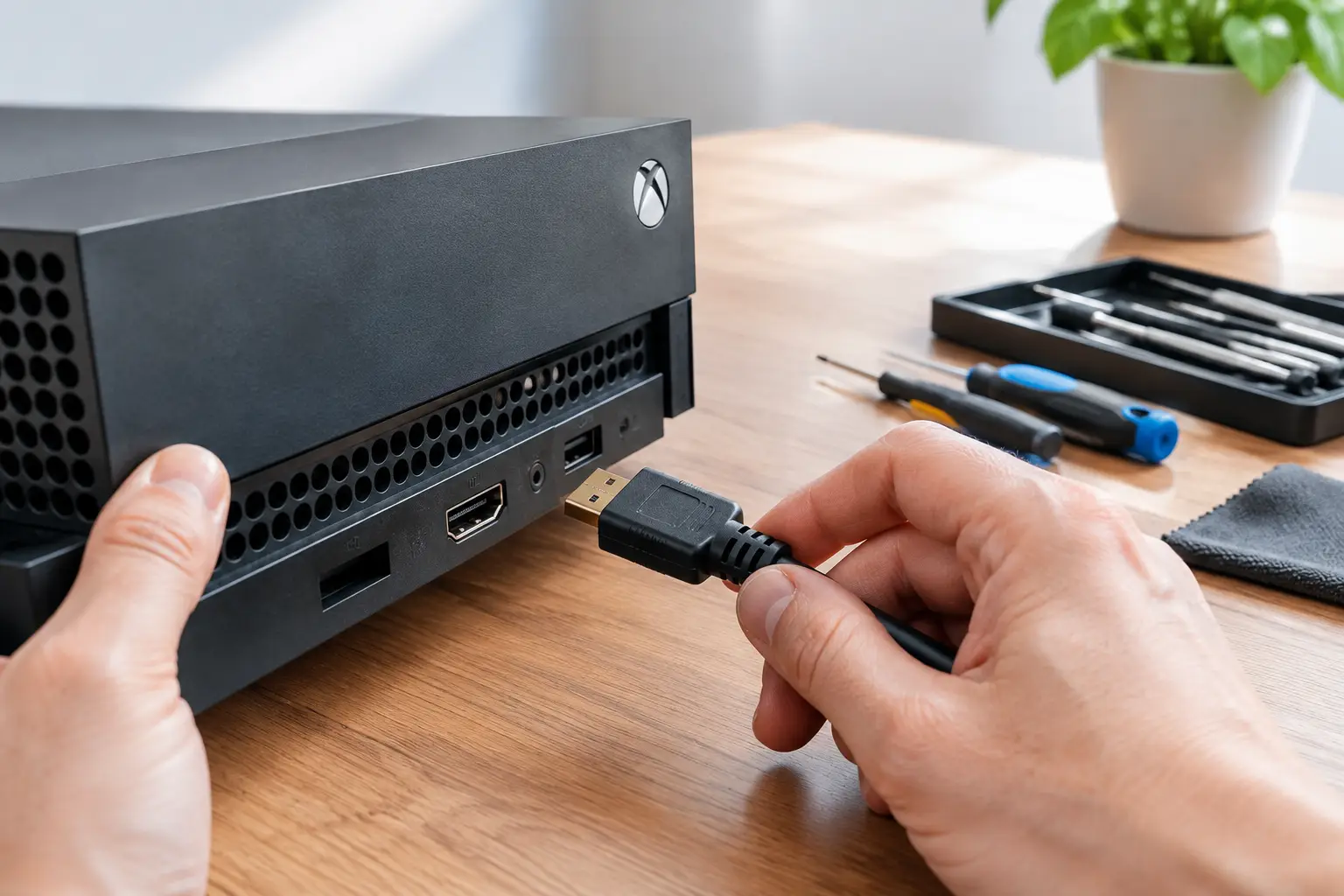

Before assuming the HDMI port has failed, test the connection outside the console. Turn off the Xbox and TV, then disconnect the HDMI cable from both ends. Look closely at the cable tips for bent pins, cracked plastic, or debris. Reconnect it firmly and make sure the TV is set to the correct HDMI input.

Next, try a different HDMI cable that you know works with another device. HDMI cables can fail internally even when the outside looks fine. If possible, test the Xbox on another TV or monitor as well. This quickly tells you whether the problem follows the console or stays with the original display.

If another cable and display work, you do not need an Xbox HDMI repair. Replace the cable or troubleshoot the TV input. If the Xbox still powers on but every tested screen says “No Signal,” the console’s HDMI output, port, or internal video circuitry becomes more likely.

Check the Correct Xbox Port

Some original Xbox One models have two HDMI ports: HDMI OUT and HDMI IN. The cable going to your TV must be connected to HDMI OUT. HDMI IN was designed for a cable box and will not send the Xbox picture to your television.

Xbox One S, Xbox One X, Xbox Series S, and Xbox Series X use a single HDMI output. Do not push a cable in at an angle or keep trying to force a loose connector into place. A port that feels unusually tight, moves inside the housing, or only works when the cable is held a certain way should be inspected by a technician.

Signs Your Xbox HDMI Port Is Damaged

A damaged port often leaves physical clues. Use a flashlight and look into the opening without inserting anything inside. The metal housing should sit squarely in the console, and the small internal pins should appear even and aligned.

Port damage is likely when the HDMI cable falls out easily, the port looks pushed inward, pins are bent or missing, or the screen cuts in and out whenever the cable moves. You may also see flickering, colored dots, distorted video, or a black screen while console audio still plays. Those symptoms can point to a damaged port, but they can also indicate damage to the HDMI retimer chip or nearby components on the motherboard.

That distinction matters. Replacing a port will not solve every no-signal issue. Qualified technicians test the port, the HDMI signal path, and the board before recommending a repair. This avoids paying for a part replacement that does not address the actual fault.

How to Repair Xbox HDMI Issues Safely

If the port looks normal and the console occasionally displays an image, start with a video reset. Xbox consoles can retain a display setting that your current TV does not support. Power the console down completely, then use the appropriate low-resolution startup procedure for your model. On many Xbox consoles, holding the Pair button and Eject button while pressing Power can start the console in a low-resolution mode. Xbox Series S does not have an Eject button, so its process differs. Check your console’s exact startup controls before trying this step.

If the picture returns, set the resolution and refresh rate to a setting your TV supports. This is especially useful after moving between a gaming monitor and an older television, or after changing 4K and HDR settings.

A physically damaged HDMI port is different. Proper repair generally requires opening the console, removing the motherboard, using controlled heat to remove the broken port, cleaning the solder pads, fitting a new port, and soldering each connection accurately. The work also requires testing for lifted pads, damaged traces, and chip-level faults.

This is not a repair where a household soldering iron and a replacement port are usually enough. HDMI ports have multiple fine-pitch connections, and too much heat can damage the board or nearby components. A port can look newly installed but still fail if one data line does not have a solid connection.

Avoid using glue, tape, toothpicks, or a bent cable to hold a failing connection in place. Those temporary workarounds can put more stress on the port and may damage the cable, connector, or board. Do not scrape inside the port with a metal object. If debris is visible, a repair professional can clean and inspect it safely.

When the Problem Is Not the Port

A console may have an intact HDMI port but no video output because of a failed HDMI retimer or encoder chip. These chips manage the video signal between the Xbox processor and the display. Power surges, liquid exposure, overheating, and repeated cable strain can contribute to this type of failure.

The symptoms can overlap with a bad port: no signal, flickering, intermittent picture, or a picture that drops out at higher resolutions. The trade-off is simple: a cable test and visual inspection can rule out basic issues, but only proper diagnostics can confirm whether the port itself is the part that needs replacement.

If the console was dropped, exposed to liquid, or started showing problems after a power event, mention that history during the repair intake. It gives the technician useful context and can prevent delays in finding the real cause.

Should You Repair or Replace an Xbox With HDMI Damage?

For most Xbox One, Xbox Series S, and Xbox Series X owners, HDMI repair is usually more practical than replacing the entire console. The right choice depends on the model, the age of the system, the extent of the board damage, and the current cost of replacement hardware.

A straightforward HDMI port replacement is generally more affordable than buying another console, especially when the Xbox otherwise works well and your game library, accessories, and account are already in place. Repair may be less attractive if there is major liquid corrosion, multiple motherboard faults, or other serious issues beyond the HDMI circuit.

Before authorizing service, ask whether the repair includes diagnostic testing and whether the port is being replaced because it is confirmed damaged. A clear explanation matters more than a guess based only on a black screen.

Get a Fast, Professional Xbox HDMI Repair

If you have tested the cable, TV, and input and still have no picture, stop repeatedly reconnecting the cable. Each forced connection can worsen a loose port or bend internal pins further. Bring the console in with its power cable and, if possible, the HDMI cable that was being used when the problem started.

At Mr FIX, qualified technicians can inspect Xbox HDMI issues, identify whether the fault is the cable, port, or internal video circuit, and explain the repair before work begins. The goal is straightforward: get your console back on the screen without the cost and downtime of replacing it unnecessarily.

A clean video signal is a small thing until game night, a child’s weekend, or your only streaming setup depends on it. Test the simple causes first, then let precise repair work handle the connection your Xbox relies on.
