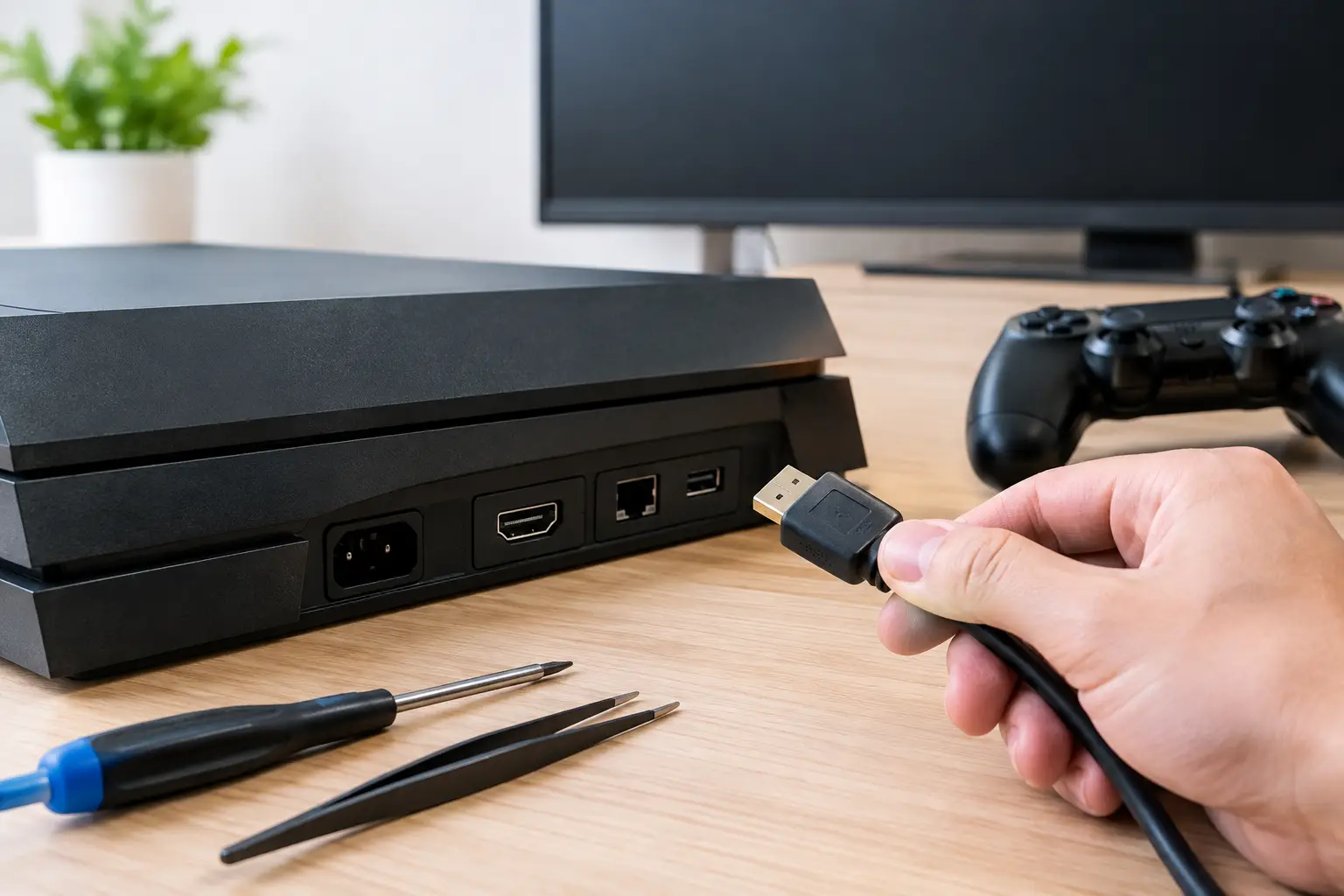

Game Console HDMI Repair Guide for No Signal

October 26, 2026

A console that powers on but leaves your TV showing “No Signal” can turn a planned gaming night into a frustrating troubleshooting session. This game console HDMI repair guide helps you separate a simple cable or setting issue from a damaged HDMI port that needs qualified repair.

HDMI problems are common on PlayStation and Xbox systems because the port sits at the back of the console, where a tight entertainment center, a pulled cable, or an accidental bump can put pressure on its tiny internal connections. The good news is that no signal does not automatically mean the console is beyond repair.

Start With the Fast Checks

Before assuming the HDMI port has failed, test the parts of the setup that are easiest to rule out. Use a different HDMI cable that you know works with another device, such as a streaming box or laptop. Then connect the console directly to a different TV input. Avoid testing through a receiver, HDMI switch, or soundbar at first, because those devices can introduce their own handshake issues.

Make sure the TV is set to the correct input. It sounds basic, but modern TVs may have several similar input labels, and some inputs support different features than others. If your TV has an enhanced HDMI mode, try turning that setting on or off after testing the console with a basic direct connection.

Next, fully power cycle both devices. Turn off the console, unplug it from power for at least 60 seconds, and disconnect the HDMI cable from both ends. Restart the TV, reconnect everything firmly, and power on the console. A temporary HDMI handshake error can sometimes clear after a complete reset.

If the picture returns with another cable or another input, you likely do not need a console repair. Replace the faulty cable and avoid sharply bending it behind the TV stand.

Signs Your HDMI Port Is Damaged

A bad cable and a broken port can look similar from the couch, but physical symptoms are usually more revealing. With the console powered off and unplugged, use a flashlight to look into the HDMI port. Do not insert metal tools, pins, or anything else into the opening.

A healthy port should look centered, straight, and secure. The inner plastic tongue should not be cracked, missing, or pushed down. The outer metal housing should not look bent or loose. If the port moves when the cable is gently connected, internal solder joints may have separated from the board.

Common signs of port damage include:

• The HDMI cable feels unusually loose or falls out easily.
• The cable only works when held at a certain angle.
• The TV detects the console briefly, then loses the picture.
• The screen flashes, shows colored dots, or displays a distorted image.
• You can see bent pins, a broken center piece, or debris inside the port.

These symptoms are especially common after a console has been dropped, moved while a cable was connected, or packed tightly for travel. Forcing a cable into a damaged port can bend more pins and turn a repairable issue into a more involved board repair.

Game Console HDMI Repair Guide: Test Before Repair

A no-signal message is not always caused by the physical HDMI connector. Software settings, power problems, display-resolution conflicts, and motherboard faults can create similar symptoms. A careful test saves time and helps avoid paying for the wrong repair.

Try starting the console in its low-resolution or safe mode, using the instructions for your specific PlayStation or Xbox model. If the console displays an image in safe mode but not during normal startup, the port may be fine. Resetting the video output setting or selecting a compatible resolution can solve the problem.

Listen for normal startup behavior as well. Does the console power on, stay on, and respond to the controller? Does it make its usual startup sound? A console that shuts down immediately, shows an error light, or never fully boots may have a separate internal issue. Replacing an HDMI port would not correct a power supply, storage, or motherboard fault.

Testing the console on a second TV is useful, but the result needs context. If it works on one TV and not another, investigate the TV input, cable, resolution, and display settings first. If it fails on multiple tested displays with multiple known-good cables, the console itself becomes the likely source of the problem.

Why HDMI Port Repair Is Not a Typical DIY Job

Replacing an HDMI port is not like swapping a cable. The connector is soldered directly to the console’s motherboard, often with many small pins and anchor points. A proper repair requires disassembly, board-level tools, controlled heat, magnification, and experience reading damaged traces and pads.

Online repair videos can make the process look quick, but the risk is real. Too much heat can damage nearby components or lift the copper pads from the board. Misaligned pins can cause no video, intermittent video, or a short circuit. A low-cost replacement port can also fit poorly or fail early.

DIY repair may make sense for an experienced electronics technician who already has the proper soldering station, microscope, hot-air equipment, flux, and testing tools. For most console owners, a professional inspection is the safer and less expensive choice than replacing a motherboard after an unsuccessful attempt.

What a Professional HDMI Repair Should Include

A qualified technician should do more than install a new connector. The console needs to be tested with known-good cables and displays, inspected for physical port damage, and checked for related board damage. If the port is replaced, the technician should confirm that the new connection is secure, clean, aligned, and producing a stable image.

Repair time and price depend on the console model and the condition of the board. A straightforward port replacement is different from a port that has torn solder pads, corrosion, or damage to nearby components. Asking for a diagnosis first is reasonable, especially when the console has no visible port damage.

At Mr FIX, experienced technicians can inspect game console HDMI issues and explain whether the problem is likely the port, cable, display setting, or another internal fault. That practical diagnosis matters because the right repair is always better than the fastest guess.

Prevent Another HDMI Failure

Once the console is working again, a few setup changes can help protect the new or existing port. Leave enough slack in the HDMI cable so it is not pulled tight against the wall or furniture. Use a flexible, good-quality cable rather than one with an oversized rigid connector that adds stress to the port.

If the console is in a cabinet, avoid pushing it backward until the cable is sharply bent. When moving the system, disconnect the HDMI cable first instead of carrying the console with the cable attached. For households with children, pets, or frequently rearranged entertainment setups, a little cable management prevents a lot of accidental damage.

Also keep dust and debris away from the rear ports. Do not blow moisture into the connector or scrape inside it. If a cable suddenly does not fit as it used to, stop and inspect the port rather than applying more force.

A black screen does not have to mean game over for your console. Test the cable, TV input, and display settings first, then let a qualified technician handle any loose, bent, or damaged HDMI port before a small connection problem becomes a larger board repair.
